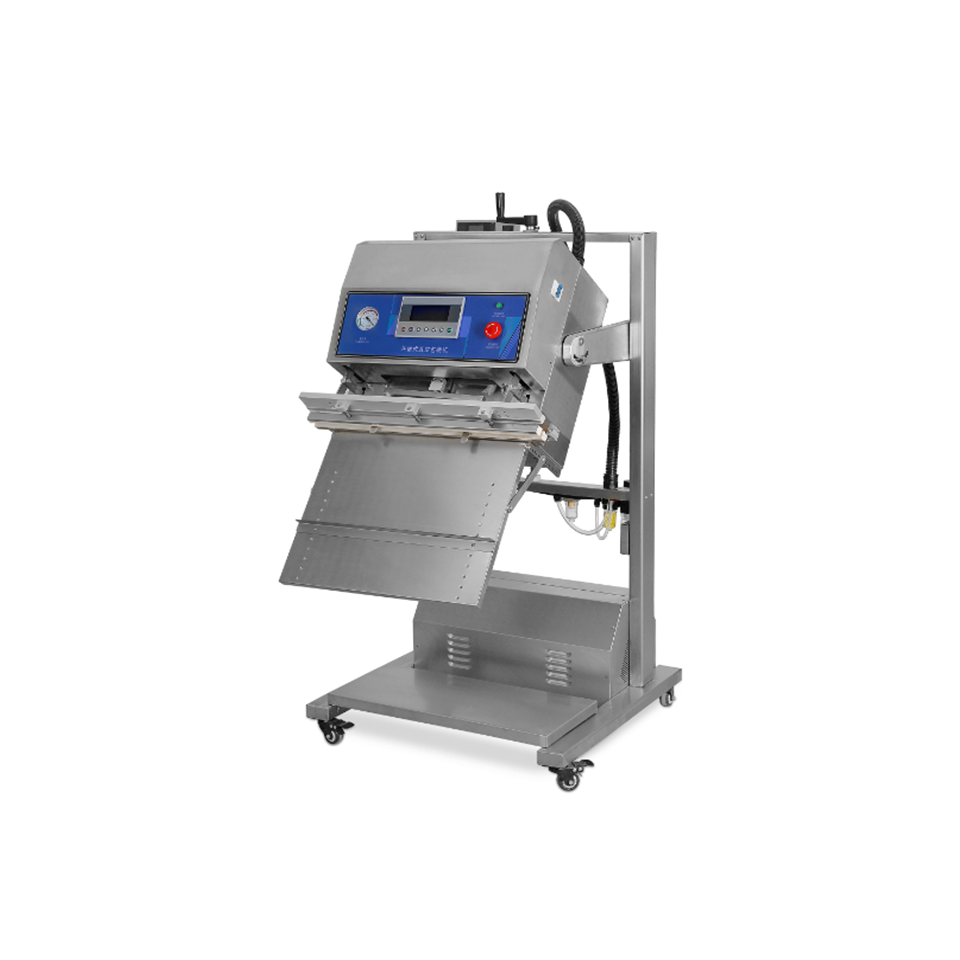

600L 800L 1000L 立式 外抽真空包装机 不锈钢 600To1000mm
SKU: HB-180
| Feature | 600L Model | 800L Model | 1000L Model |
|---|---|---|---|
| Model | 600 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE | 800 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE | 1000 VERTICAL EXTERNAL VACUUM PACKAGING MACHINE |
| Power Supply | 220/50Hz | 220/50Hz | 220/50Hz |
| Motor Power | 1kW | 1kW | 1kW |
| Heating Power | 0.95kW | 0.95kW | 0.95kW |
| Vacuum Pump Rate | 20m³/h | 20m³/h | 20m³/h |
| Air Pressure Requirement | 0.85MPa | 0.85MPa | 0.85MPa |
| Sealing Length | 600mm | 800mm | 1000mm |
| Sealing Width | 10mm | 10mm | 8mm |
| Dimensions (L×W×H) | 700×680×1400mm | 900×680×1400mm | 1096×840×1865mm |
| Material | 201 Stainless Steel | 201 Stainless Steel | 304 Stainless Steel |
| Net Weight | 85kg | 85kg | 150kg |
| Adjustable Range | 600mm | 600mm | 470mm |
| Min. Height | 300mm | 300mm | 900mm |
| Max. Height | 900mm | 900mm | 1370mm |
| Control System | Standard | Standard | PLC + Touchscreen |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Warranty | 1 Year | 1 Year | 1 Year |
Product Overview
Engineered for space-constrained production environments, the Stainless Steel External Suction Vertical series maximizes floor efficiency while delivering professional packaging performance. Available in 600mm, 800mm, and 1000mm sealing lengths, these vertical-design machines feature robust stainless steel construction and advanced height adjustment systems. The premium 1000L model includes PLC and touchscreen controls for precision operation, making this series ideal for food processors, pharmaceutical companies, and industrial packaging facilities seeking to optimize their workspace utilization.
Key Features
Space-Saving Vertical Design
Compact footprints with 1400-1865mm heights maximize production area efficiency while maintaining full packaging capability
Adjustable Height Range
Flexible height adjustment from 300mm to 1370mm accommodates various product sizes, from small items to tall packages
Premium Stainless Steel Construction
201 and 304 stainless steel bodies ensure corrosion resistance and meet food-grade hygiene requirements
Advanced Control Systems
Standard models feature basic controls while 1000L model includes PLC and touchscreen for precise parameter adjustment
Efficient External Suction Technology
20m³/h vacuum pump rate provides rapid air removal without chamber loading requirements
Professional Sealing Performance
10mm and 8mm sealing widths with 0.95kW heating power ensure reliable, consistent package closures
Applications
Perfect for diverse packaging requirements
Food processing and meat packaging operations
Pharmaceutical and medical device packaging
Industrial components and parts protection
Electronics and sensitive equipment sealing
Chemical and laboratory product packaging
Retail and consumer goods packaging
Technical Excellence
Standard 220V/50Hz power supply for easy installation
0.85MPa air pressure requirement for consistent performance
Heavy-duty construction (85-150kg) ensures operational stability
CE and RoHS certified for international safety compliance
Comprehensive 1-year warranty coverage
Energy-efficient 1kW motor power design
Optimize your production space with these vertical packaging solutions. Combining space-efficient design with professional performance, this series offers smart packaging solutions for businesses seeking to maximize their facility layout. Contact us to learn more about configuration options and scheduling an onsite demonstration.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：600L 800L 1000L 立式 外抽真空包装机 不锈钢 600To1000mm
- SKU / 型号：HB-180
- 分类：Packaging Machine / Vertical Sealing Machine / Filling and Sealing Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
600L 800L 1000L 立式 外抽真空包装机 不锈钢 600To1000mm 适用于哪些项目？
600L 800L 1000L 立式 外抽真空包装机 不锈钢 600To1000mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-180 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
