双 真空 包装 设备 150-300mm
SKU: HB-109
| Parameter | DZ-500/2S Deepened Series | DZ-600/2S 150mm Deep | DZ-600/2S 200mm Deep | DZ-600/2S 300mm Deep | DZ-700/2SB Deepened Series |
|---|---|---|---|---|---|
| Basic Information | |||||
| English Name | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chamber Vacuum Packaging Machine | Double Chambers Vacuum Packaging Machine |
| Model | DZ-500/2S | DZ-600/2S | DZ-600/2S | DZ-600/2S | DZ-700/2SB |
| Series | Deepened Series | 150mm Deepened | 200mm Deepened | 300mm Deepened | Deepened Series |
| Technical Specifications | |||||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 | 2000 | 3000 |
| Sealing Power (W) | 1000 | 1000 | 1000 | 1000 | 1300 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 580×440×(150-300) | 680×440×150 | 680×440×200 | 680×440×300 | 750×620×(150-300) |
| Deep Chamber Dimensions (L×W×H) (mm) | - | 680×440×150 | 680×440×200 | 680×440×300 | - |
| Sealing Length (mm) | 500 | 600 | 600 | 600 | 700 |
| Sealing Width (mm) | 10 | 10 | 10 | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 | 20×2 | 20×2 | 20×3 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1295×780×(1090-1340) | 1495×780×1090 | 1495×780×1240 | 1495×780×1340 | 1600×810×(1090-1340) |
| Net Weight (kg) | 200 | 230 | 240 | 245 | 360 |
| Center Distance Between Sealing Bars (mm) | 500 | 500 | 500 | 500 | 530 |
Product Overview

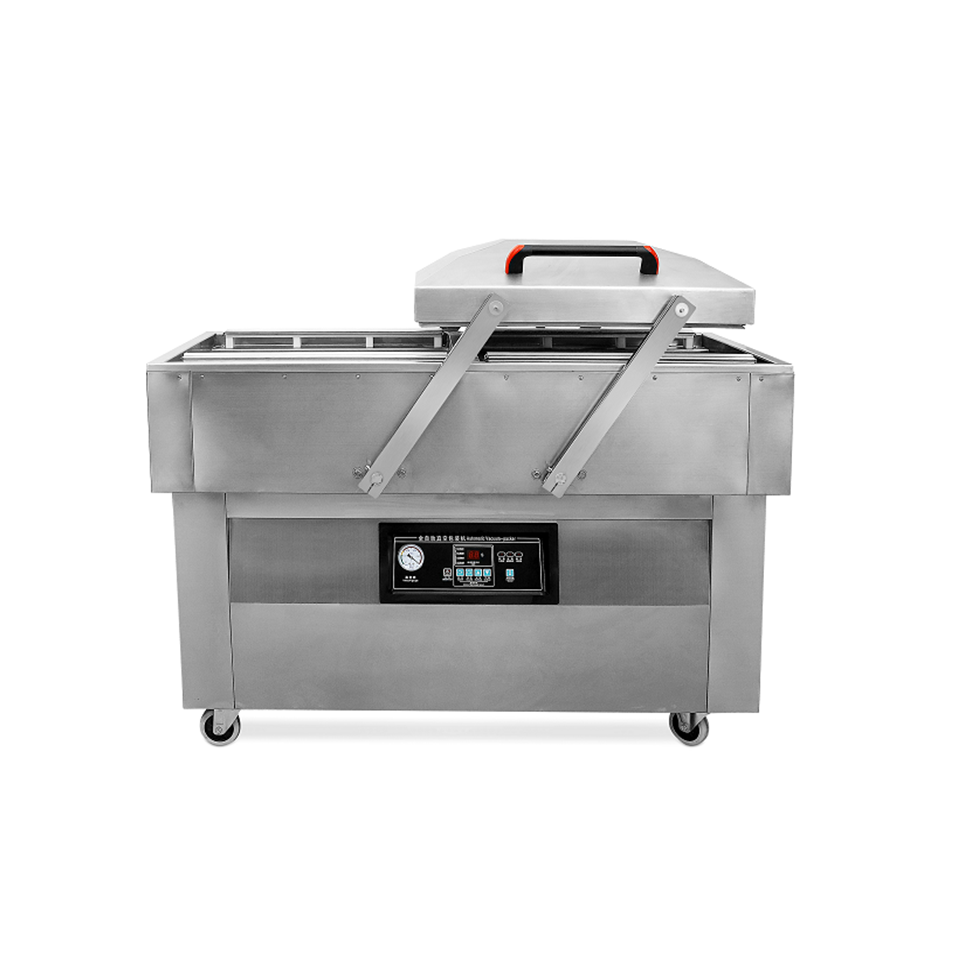

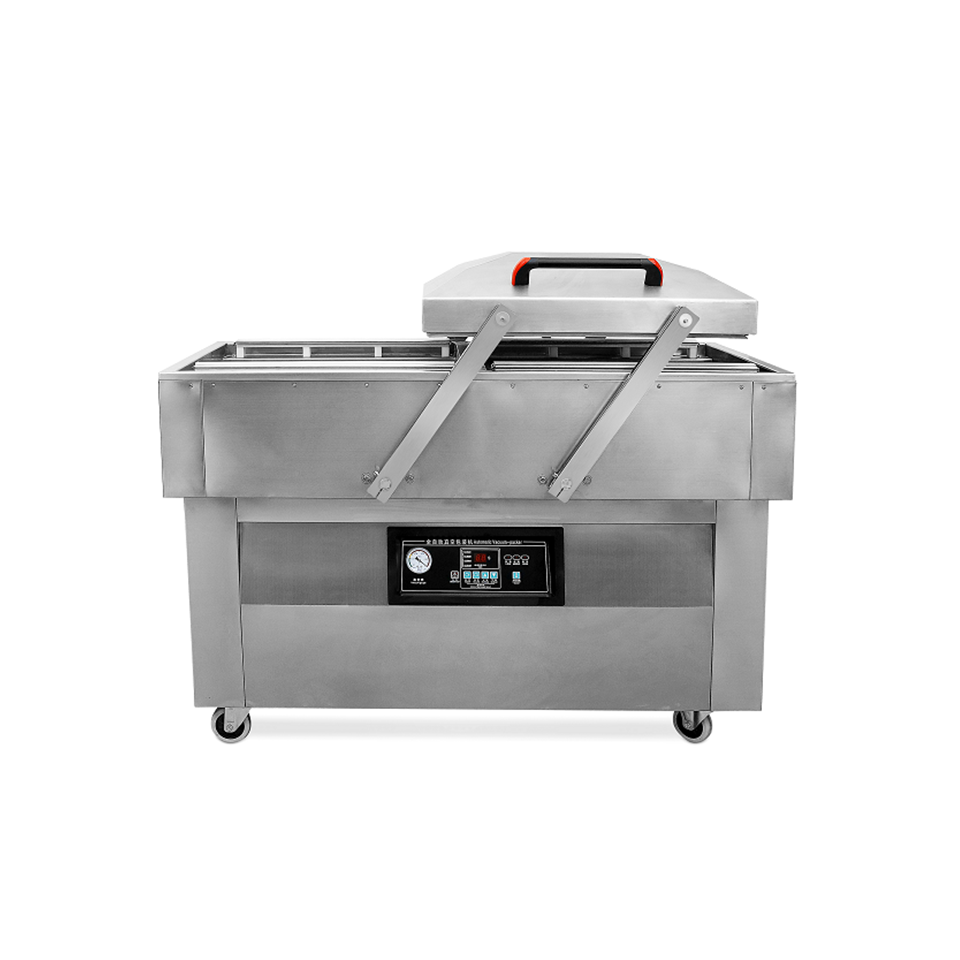

Engineered for specialized food packaging applications, the Double-Chamber Deepened Series Vacuum Packaging Machine delivers enhanced vertical capacity through its innovative deep chamber design. This professional-grade system combines extended chamber depth with continuous dual-chamber operation to accommodate taller products and optimize production efficiency. Available in multiple depth configurations, the machine addresses unique packaging requirements for bulk and irregularly shaped food products in commercial processing environments.
Key Features
Enhanced Depth Capacity - 150mm to 300mm adjustable chamber height accommodates taller products and bulk packaging requirements
Multiple Depth Options - Choose from 150mm, 200mm, or 300mm chamber depths to match specific product dimensions
Dual Chamber Efficiency - Continuous alternating operation maximizes production output with minimal downtime
Progressive Sizing Range - Available in 500mm, 600mm, and 700mm sealing lengths for various production scales
High-Performance Vacuum - 2000-3000W motor power with 40-60m³/h extraction capacity ensures complete air removal
Dual Sealing System - Two 10mm sealing bars per chamber with 1000-1300W power deliver secure package integrity
Applications
Tall or stacked product packaging
Bulk food and ingredient packaging
Irregularly shaped food products
Portioned meat and poultry packaging
Prepared meal and multi-layer packaging
Technical Excellence
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Heavy-duty construction (200-360kg) ensures stability during continuous operation
Extended chamber design (580×440mm to 750×620mm) supports various product configurations
Industrial-grade components guarantee reliable 24/7 performance
Standard 380V power compatibility meets industrial facility requirements
For food processing operations requiring enhanced vertical packaging capacity, the Double-Chamber Deepened Series Vacuum Packaging Machine offers specialized solutions with professional-grade performance. Contact us for technical specifications and depth configuration guidance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：双 真空 包装 设备 150-300mm
- SKU / 型号：HB-109
- 分类：Packaging Machine / Vacuum Sealer / Double Chamber Vacuum Sealer
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
双 真空 包装 设备 150-300mm 适用于哪些项目？
双 真空 包装 设备 150-300mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-109 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
