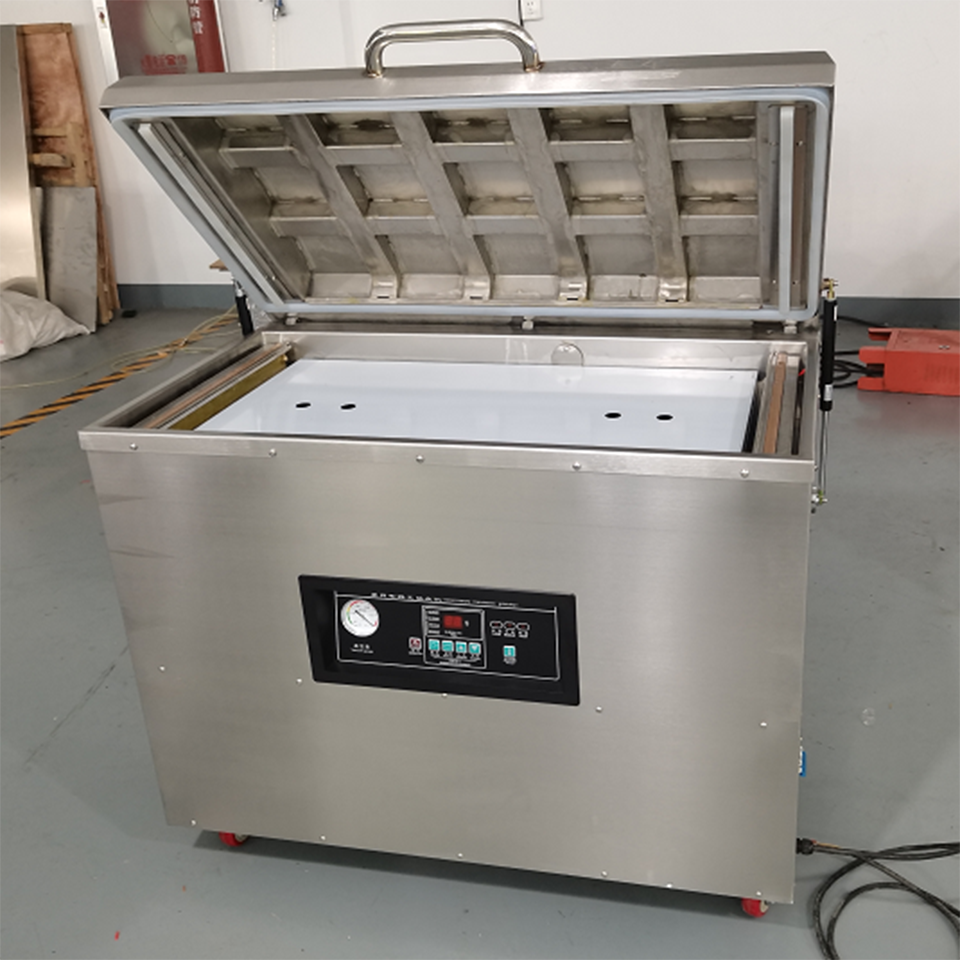

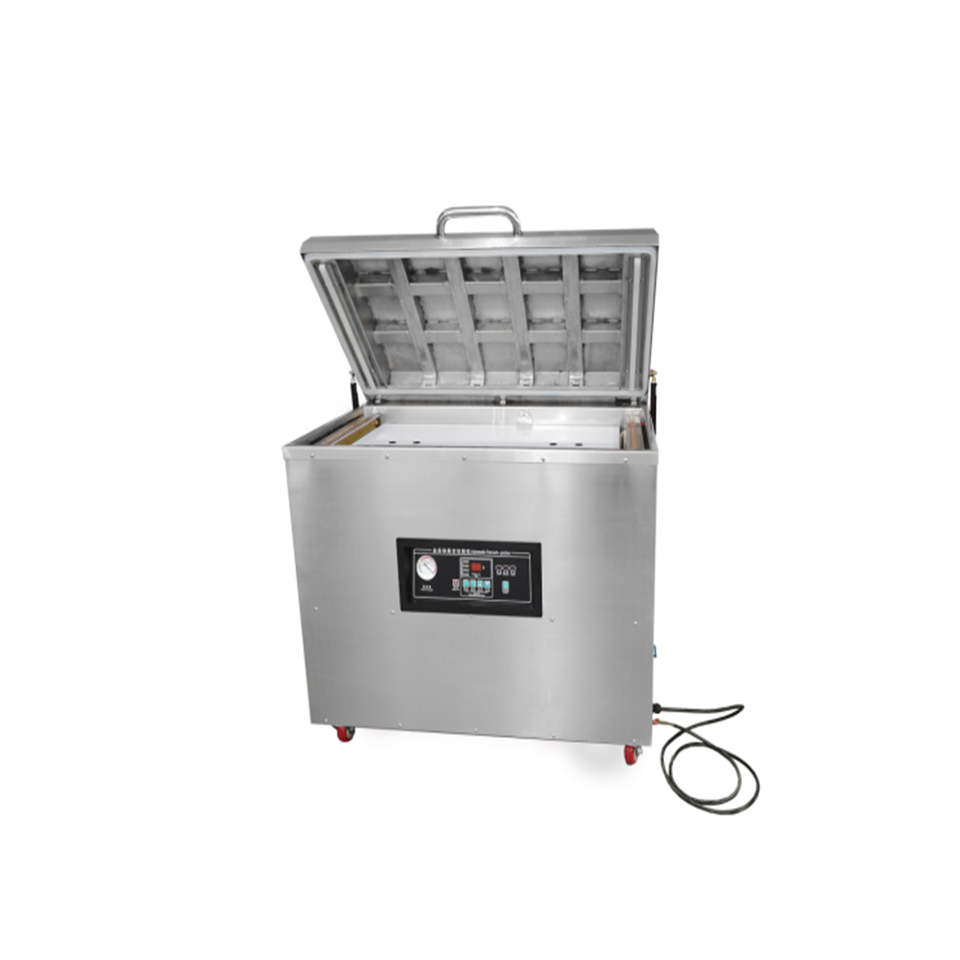

DZ-400/2E 真空 包装 设备 400mm
SKU: HB-61
| Parameter | DZ-400/2E Arc Extending Chamber | DZ-500/2E Arc Extending Chamber | DZ-600/2E Arc Extending Chamber |
|---|---|---|---|
| Basic Information | |||
| English Name | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) | Arc Extending Chamber Vacuum Packaging Machine (Chamber Length: 1040mm) |
| Model | DZ-400/2E | DZ-500/2E | DZ-600/2E |
| Technical Specifications | |||
| Power Supply (V/Hz) | AC 220/50 | AC 220/50 | AC 220/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 |
| Sealing Power (W) | 500 | 750 | 1000 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 |
| Chamber Dimensions (L×W×H) (mm) | 1000×425×170 | 1000×520×230 | 1000×620×230 |
| Sealing Length (mm) | 400 | 500 | 600 |
| Sealing Width (mm) | 10 | 10 | 10 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2 | 20×2 |
| Chamber Material | Stainless Steel 201 | Stainless Steel 201 | Stainless Steel 201 |
| External Dimensions (L×W×H) (mm) | 1040×475×980 | 1040×575×980 | 1040×675×980 |
| Net Weight (kg) | 200 | 230 | 280 |
| Center Distance Between Sealing Bars (mm) | 900 | 900 | 900 |
Product Overview
Engineered for modern food processing facilities, the Arc Extending Chamber Vacuum Packaging Machine delivers enhanced packaging efficiency through its innovative elongated chamber design. This professional-grade equipment combines powerful vacuum technology with extended sealing capabilities to handle larger or multiple products simultaneously. Available in three configurations with varying sealing lengths, the machine maintains consistent performance while optimizing production workflow in demanding food packaging environments.
Key Features
Extended Chamber Design - 1040mm chamber length accommodates larger products or multiple items per cycle
Dual Vacuum System - 2000W motor power with 40m³/h total extraction capacity ensures rapid air removal
Progressive Sealing Options - Choose from 400mm, 500mm, or 600mm sealing lengths to match production requirements
High-Capacity Performance - Generous chamber dimensions (1000×425×170mm to 1000×620×230mm) support diverse product sizes
Dual Sealing Bar Configuration - Two 10mm wide sealing bars with 500-1000W power ensure reliable package integrity
Robust Construction - Stainless steel 201 chambers and heavy-duty frames (200-280kg) withstand continuous operation
Applications
Large-format food product packaging
Batch processing of multiple items
Meat and poultry processing facilities
Seafood and fishery product packaging
Prepared meal and portion packaging
Technical Excellence
High-efficiency dual vacuum pumps (20×2 m³/h) accelerate production cycles
Precision temperature control maintains consistent sealing quality
Optimized chamber geometry maximizes usable workspace
Industrial-grade components ensure reliable 24/7 operation
Standard 220V power compatibility simplifies facility integration
For food processing operations requiring extended packaging capabilities, the Arc Extending Chamber Vacuum Packaging Machine offers enhanced capacity with professional-grade reliability. Contact us for technical specifications and model selection guidance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DZ-400/2E 真空 包装 设备 400mm
- SKU / 型号：HB-61
- 分类：Packaging Machine / Single Chamber Vacuum Sealer / Vacuum Sealer
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DZ-400/2E 真空 包装 设备 400mm 适用于哪些项目？
DZ-400/2E 真空 包装 设备 400mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-61 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
