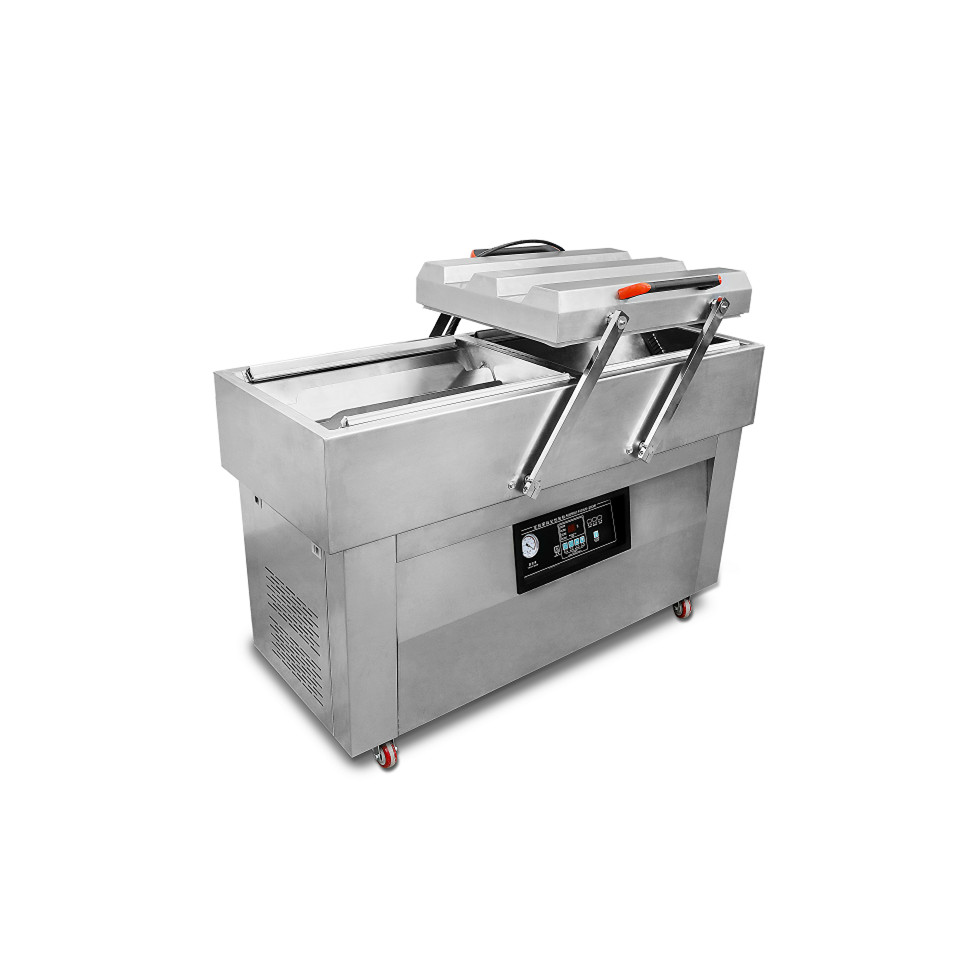

DZ-600/2QX 商用 双 真空 包装 设备 600mm
SKU: HB-121
| Parameter | DZ-600/2QX | DZ-600/2QX Extended Width | DZ-700/2QX |
|---|---|---|---|
| Basic Information | |||
| English Name | Double Chamber Inclined Vacuum Packaging Machine | Double Chamber Inclined Vacuum Packaging Machine | Double Chamber Inclined Vacuum Packaging Machine |
| Model | DZ-600/2QX | DZ-600/2QX | DZ-700/2QX |
| Series | 600mm Inclined | 600mm Inclined Extended Width | 700mm Inclined |
| Technical Specifications | |||
| Power Supply (V/Hz) | AC 380/50 | AC 380/50 | AC 380/50 |
| Vacuum Pump Motor Power (W) | 2000 | 2000 | 2000 |
| Sealing Power (W) | 1000 | 1000 | 1300 |
| Ultimate Vacuum Pressure (KPa) | 1 | 1 | 1 |
| Number of Sealing Bars per Chamber | 2 | 2 | 2 |
| Chamber Dimensions Depth (mm) | 202 | 180 | 190 |
| Chamber Gradient Angle | 40° | 30° | 45° |
| Chamber Working Depth (mm) | 200 | 180 | - |
| Baffle Adjustment Range (mm) | 150 | 150 | 150 |
| Sealing Bar to Chamber Bottom Distance (mm) | 330 | 355 | 300 |
| Distance Between Sealing Bars (mm) | - | - | 460 |
| Chamber Specifications | |||
| Sealing Length (mm) | 600 (M-type) | 600 (M-type) | 700 (M-type) |
| Sealing Width (mm) | 8 | 8 | 8 |
| Chamber Material | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
| Vacuum Pump Rate (m³/h) | 20×2 | 20×2/63/100 | 20×2 |
| Physical Specifications | |||
| External Dimensions (L×W×H) (mm) | 1450×640×1020 | 1500×890×1110 | 1650×640×1020 |
| Net Weight (kg) | 205 | 320 | 320 |
Product Overview
Engineered for ergonomic food packaging operations, the Double-Chamber Inclined Vacuum Packaging Machine delivers enhanced accessibility and workflow efficiency through its innovative angled chamber design. This professional-grade system combines operator-friendly ergonomics with industrial performance to optimize production of liquid-containing and delicate food products. Available in multiple configurations with varying incline angles, the machine addresses challenging packaging requirements while reducing operator fatigue in high-volume environments.
Key Features
Ergonomic Incline Design - 30° to 45° chamber angles improve loading accessibility and reduce operator strain
Dual Chamber Efficiency - Continuous alternating operation maintains maximum production output
Extended Width Option - Additional chamber width accommodates larger products and batch processing
Liquid Management System - Angled chamber design effectively handles liquid-rich products and sauces
High-Performance Vacuum - 2000W motor power with 40-100m³/h extraction capacity ensures complete air removal
Dual Sealing Configuration - Two 8mm sealing bars with 1000-1300W power deliver secure package integrity
Applications
Liquid-containing food products
Marinated meat and poultry packaging
Sauce-based prepared foods
Delicate and fragile food items
High-volume production lines
Technical Excellence
Precision vacuum control maintains 1 Kpa ultimate pressure for optimal preservation
Adjustable baffle system (150mm range) accommodates various product sizes
Premium stainless steel 304 construction ensures corrosion resistance
Heavy-duty construction (205-320kg) provides operational stability
Industrial-grade components support continuous 24/7 performance
For food processing operations prioritizing ergonomic design and liquid management, the Double-Chamber Inclined Vacuum Packaging Machine offers superior accessibility with professional-grade reliability. Contact us for technical specifications and configuration options.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DZ-600/2QX 商用 双 真空 包装 设备 600mm
- SKU / 型号：HB-121
- 分类：Packaging Machine / Vacuum Sealer / Double Chamber Vacuum Sealer
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DZ-600/2QX 商用 双 真空 包装 设备 600mm 适用于哪些项目？
DZ-600/2QX 商用 双 真空 包装 设备 600mm 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-121 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
