DQ320L-E 立式 MAP 包装 设备 燃气 5-6 /分钟
SKU: HB-27
| Feature | Specification | Key Components & Configuration |
|---|---|---|
| Equipment Model | DQ320L-E | Dasa Core Modified Atmosphere Packaging Technology |
| Film Max Width (mm) | 320 | Main Structure & Shell - 304 Stainless Steel |
| Film Max Diameter (mm) | 220 | Molding Parts - 6061 Aluminum (Anodized) |

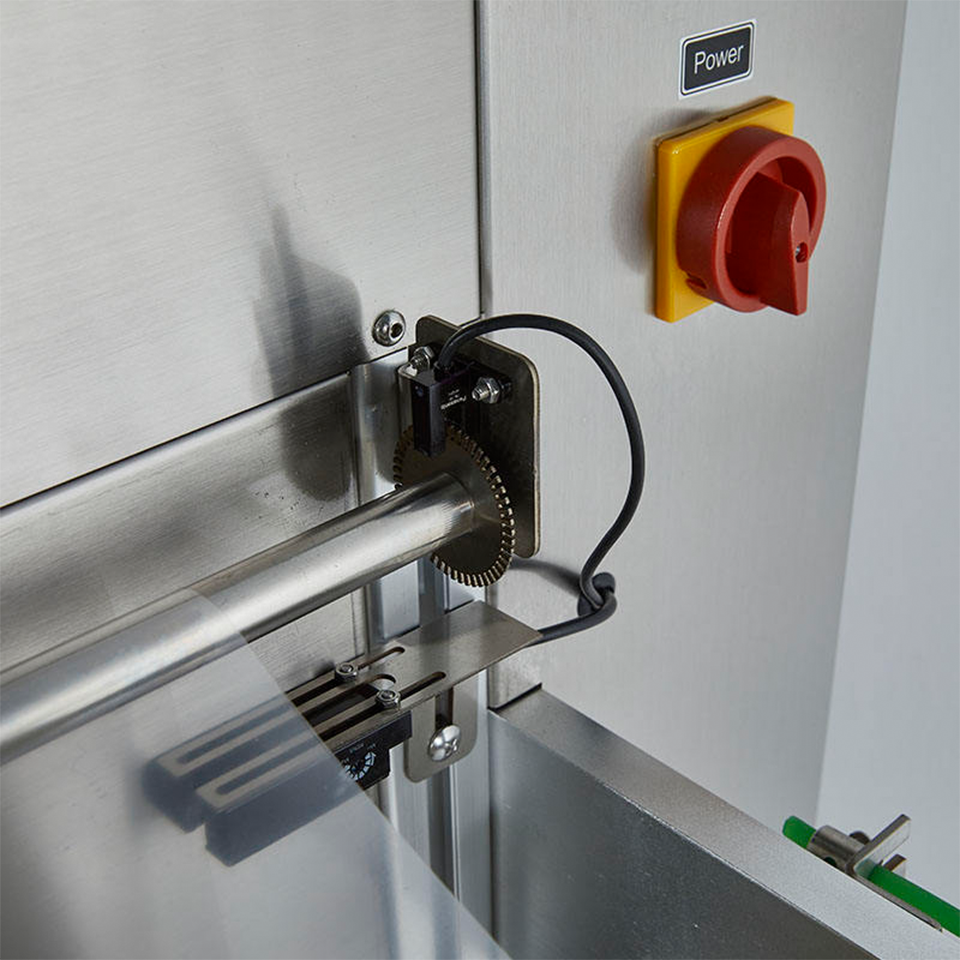

| Gas Replacement Rate | ≥99% | Photoelectric Sensor (Length Counter) - Dasa Self-developed |
| Gas Mixing Accuracy (%) | ±2% Fluctuation | Photoelectric Sensor (Mark Film) - Xinling Electric |
| Packing Speed (times/min) | 5-6 | DC Power Supply - Delta |
| Output Capacity (boxes/hour) Output 1 | ≈360 | Cylinders - Airtac (Taiwan) ACQ125 |
| Output Capacity (boxes/hour) Output 2 | ≈640 | Solenoid Valves - Airtac (Taiwan) |
| Power Supply (V/Hz) | 220/50 | Touch Screen - Kunlun Tongtong |

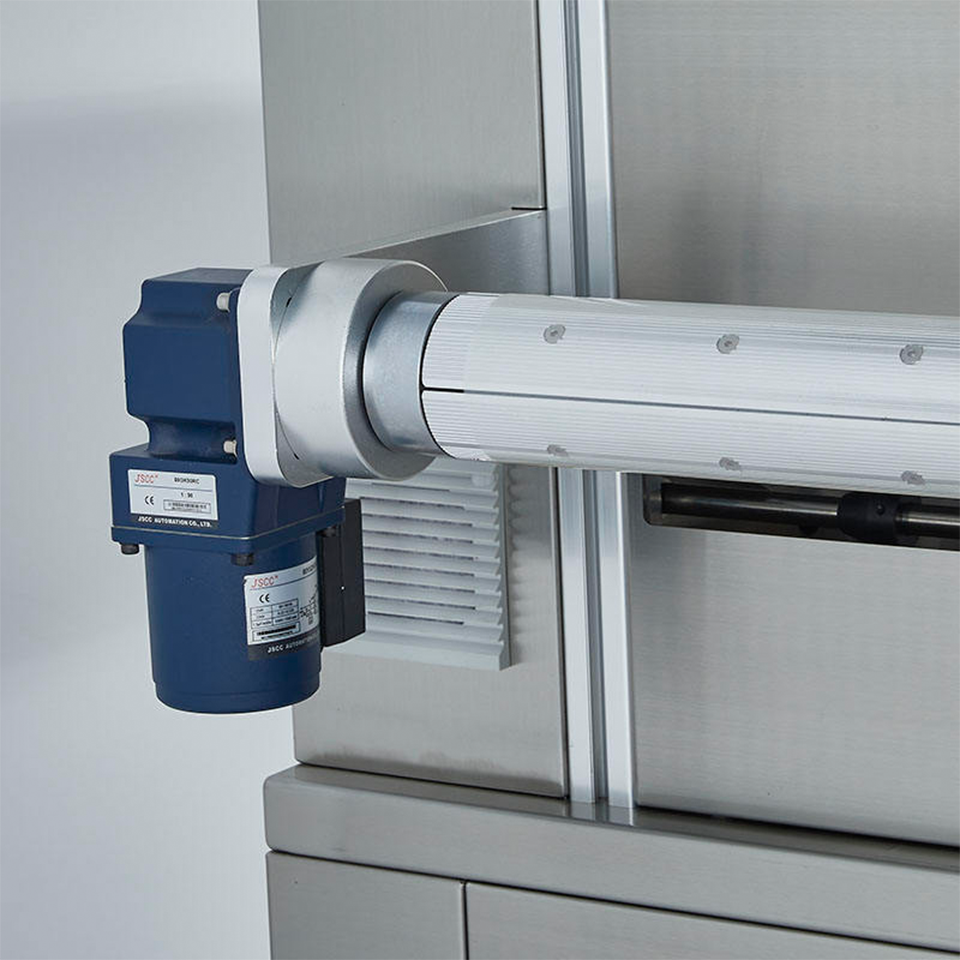

| Total Power (kW) | 1.5 | Film Winding Motor - Baokelee |
| Working Pressure (MPa) | 0.6-0.8 | Control System - Dasa Intelligent Self-developed System |
| Equipment Weight (kg) | 141.5 | Push Button Switch - Delixi |
| Equipment Dimensions L×W×H (mm) | 1000×915×1400 | Circuit Breaker - Delixi |
| Gross Weight (kg) | 351 | Relay - Delixi |
| Net Weight (kg) | 351 | Fuse Holder - Delixi |

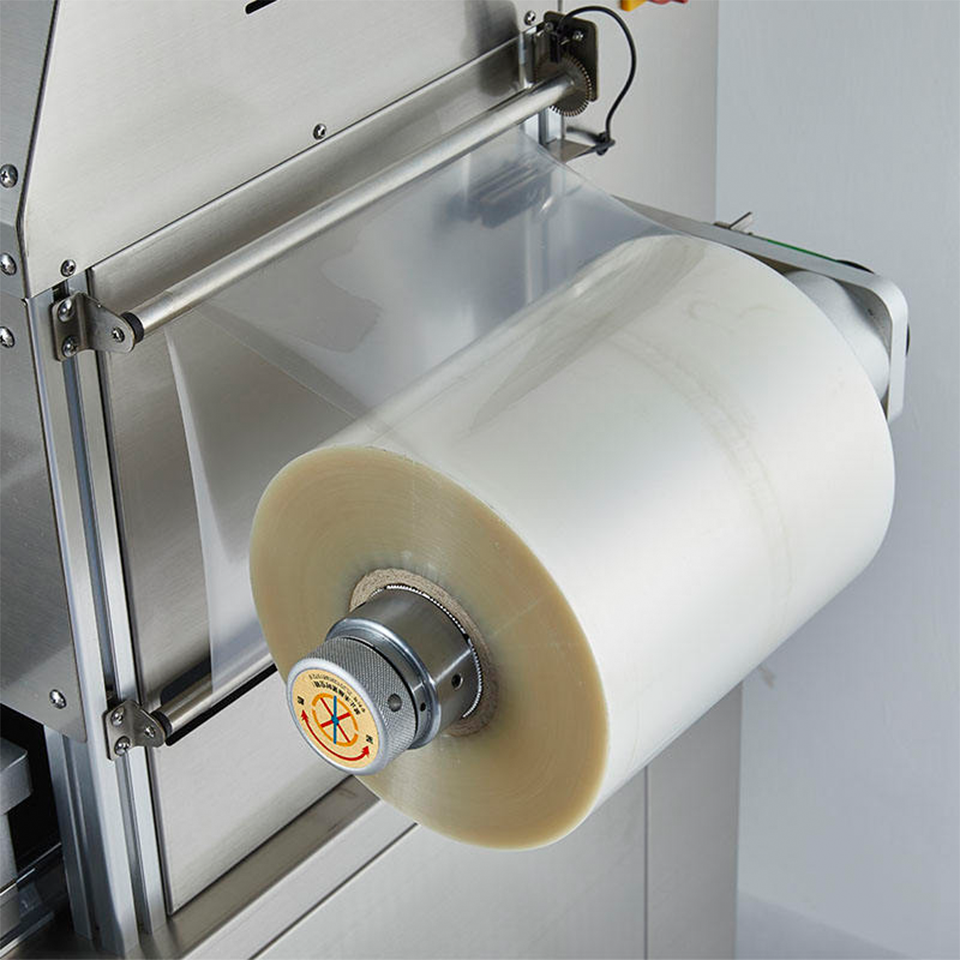

| Package Dimensions L×W×H (mm) | 1100×1020×1560 | Film Winding System - Dual-hand Expandable Shaft |

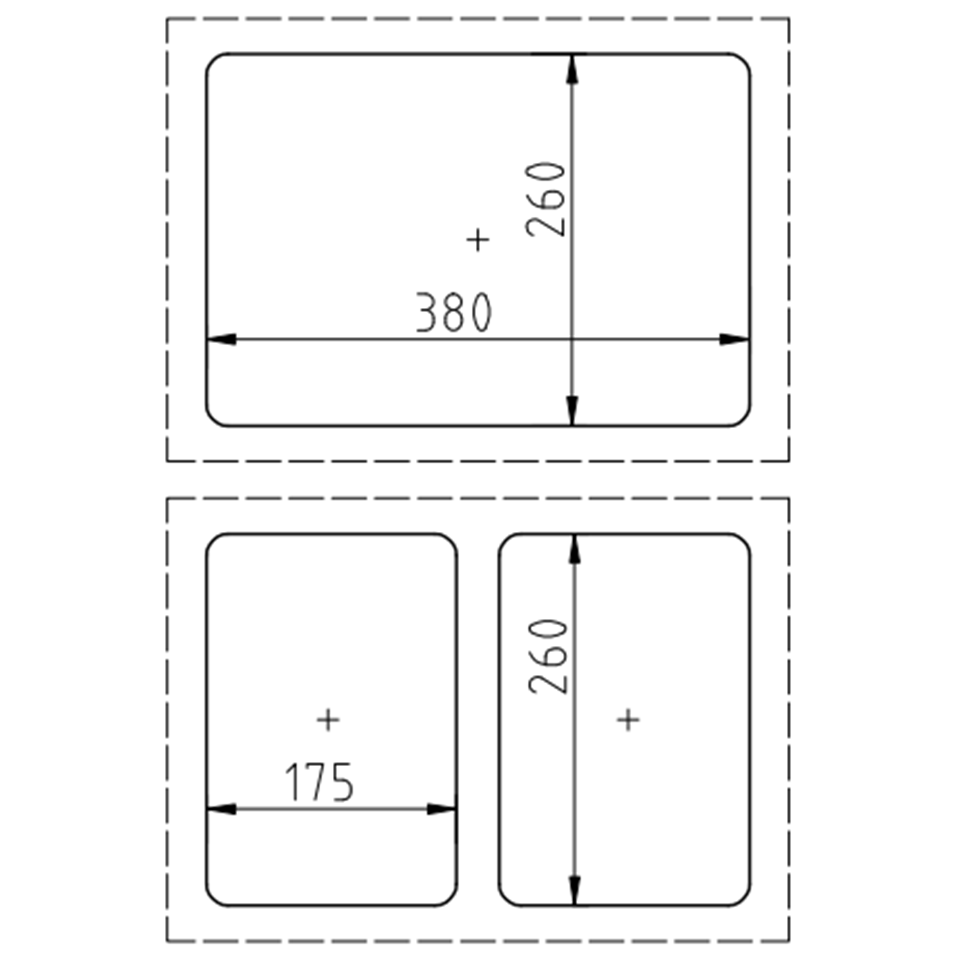

| Max Tray Size (mm) Output 1 | 380×260×80 (*1) | Solid State Relay - Xinda |
| Max Tray Size (mm) Output 2 | 260×180×80 (*2) |
Product Overview

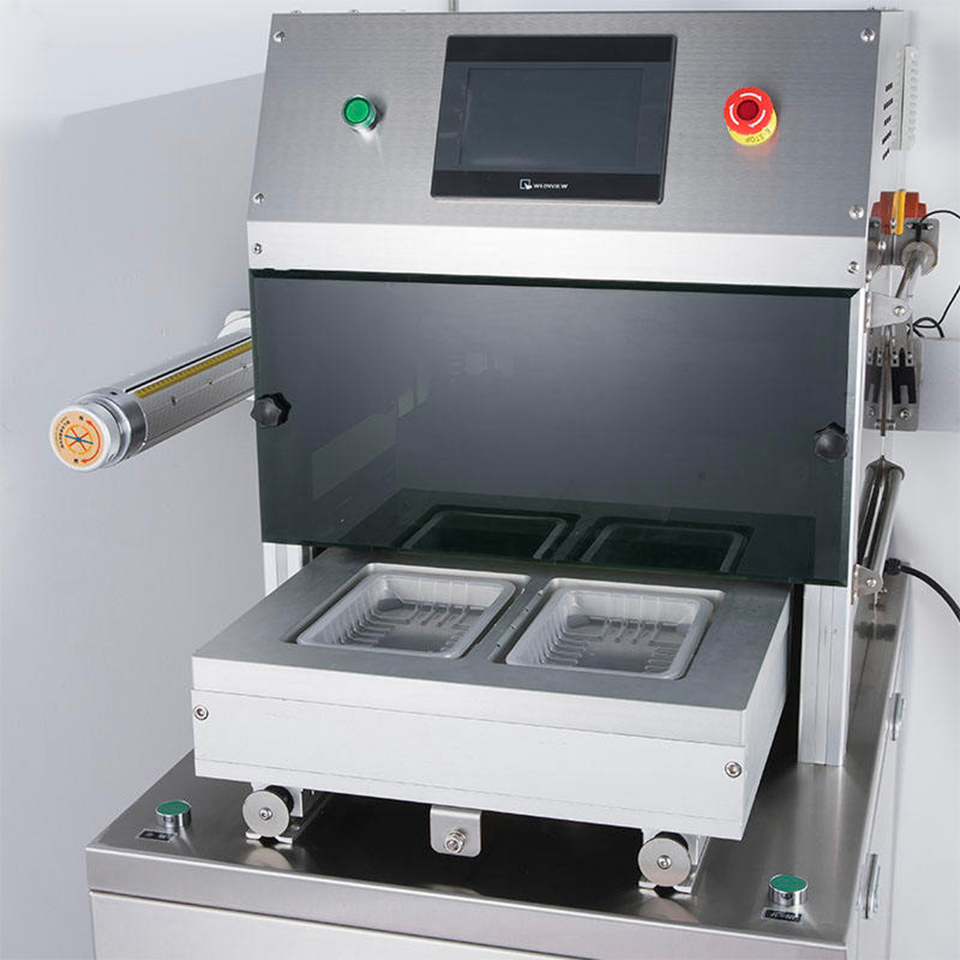

The DQ320L-E Vertical Modified Atmosphere Packaging Machine delivers exceptional food preservation through advanced gas flushing technology, achieving laboratory-grade ≥99% gas replacement rates with precise ±2% mixing accuracy. Engineered with durable 304 stainless steel construction and 6061 anodized aluminum molds, this system maintains reliable 5-6 cycles per minute operation while ensuring optimal atmosphere control for extended shelf life. Equipped with Airtac pneumatic components and Delta power systems, it provides consistent performance for medium-scale production requirements. The intuitive Kunlun Tongtong touchscreen interface and intelligent control system make professional MAP packaging accessible for food processors seeking to enhance product quality and freshness.
Key Features
-
Precision Gas Control - Maintains ≥99% gas replacement rate with ±2% accuracy for optimal food preservation
-
High-Speed Operation - Delivers 5-6 cycles per minute with dual-output capacity up to 640 packages hourly
-
Professional Components - Features Airtac pneumatic systems, Delta power supply, and self-developed photoelectric sensors
-
Durable Construction - 304 stainless steel frame with anodized aluminum molds for long-lasting performance
- Intelligent Control - Kunlun Tongtong touchscreen with self-developed control system for precise operation
Applications
-
Fresh Meat & Poultry - Ideal for portioned cuts, marinated products, and value-added meats
-
Prepared Foods - Perfect for ready-to-eat meals, ingredient kits, and meal preparation services
-
Fresh Produce - Excellent for seasonal fruits, vegetables, and salad mixes
Specialty Products - Suitable for dairy items, baked goods, and gourmet food lines
Technical Advantages
-
Consistent gas flushing performance across all production cycles
-
Quick changeover capability between different tray configurations
-
Energy-efficient operation with optimized 1.5kW power consumption
-
Compact vertical design maximizes production space utilization
Compatible with various film types and packaging materials
Operation & Support
Each machine undergoes comprehensive testing and includes detailed operational guidance. Our technical team provides complete installation support and ongoing maintenance services.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：DQ320L-E 立式 MAP 包装 设备 燃气 5-6 /分钟
- SKU / 型号：HB-27
- 分类：Packaging Machine / MAP Packaging Machine / Modified Atmosphere Packaging Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
DQ320L-E 立式 MAP 包装 设备 燃气 5-6 /分钟 适用于哪些项目？
DQ320L-E 立式 MAP 包装 设备 燃气 5-6 /分钟 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HB-27 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
