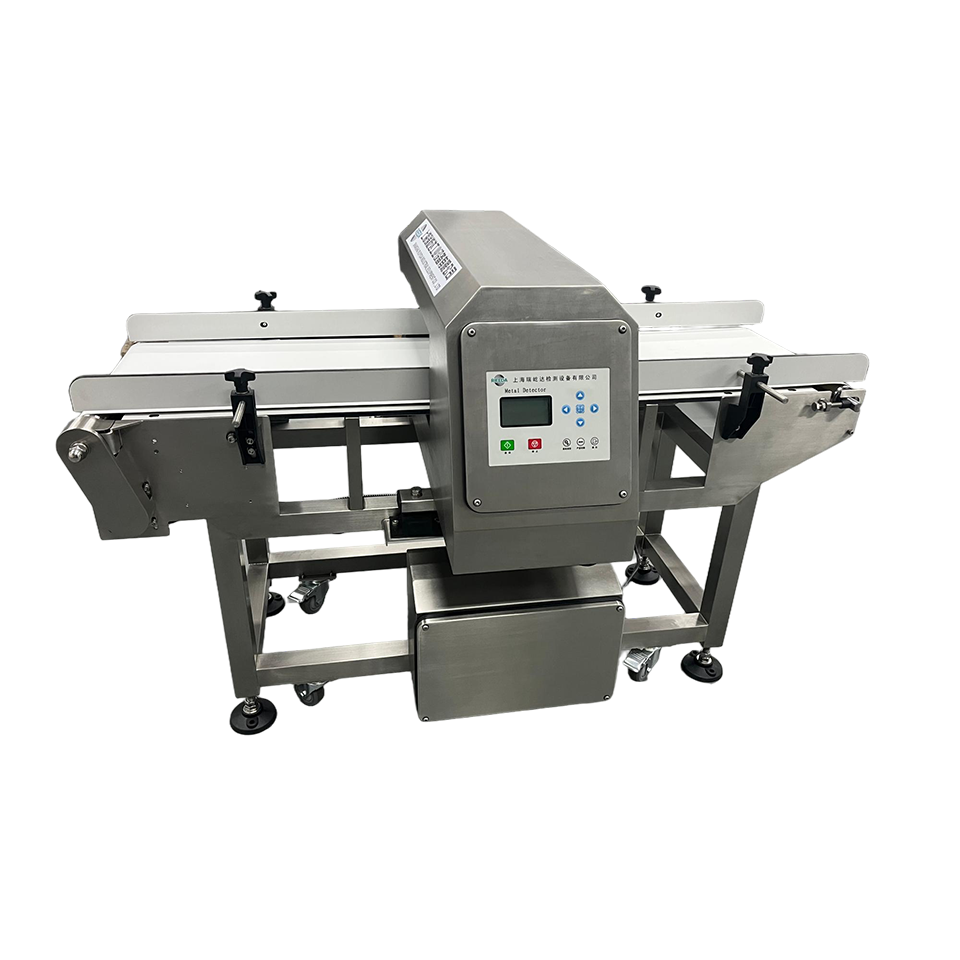

高灵敏度金属检测机 食品级 袋装产品 SUS304 不锈钢
SKU: HJ-2
Technical Parameters – RD-4015A Metal Detector (Standard Model)
| Category | Parameter | Specification |
|---|---|---|
| General Information | Model | RD-4015A (Standard Model) |
| Application | Bagged Products | |
| Main Material | SUS304 Stainless Steel | |
| Design Standard | Fully compliant with GMP food standards and FDA requirements | |
| Product Effect Suppression | Standard anti-interference shielding | |
| Detection Chip | Imported chip | |
| Mechanical Specifications | Overall Length | 1500 mm |
| Aperture Size | W430 × H180 mm | |
| Max Product Size | W400 × H150 mm | |
| Conveyor Height | 750 ± 50 mm | |
| Conveying Direction | Left to Right | |
| Conveyor Belt Width | 400 mm | |
| Conveyor Belt Material | Imported PU belt (oil-resistant, low-temperature resistant, waterproof) | |
| Detection & Control | Detection Method | Automatic |
| Detection Probe | DPS Digital Signal Source (Germany) | |
| Operation Interface | Electroplated key operation | |
| Auto-Setting Function | Automatic self-learning sensitivity setting | |
| Protection & Safety | Protection Level | IP56 Food Grade |
| Detection Sensitivity (No Load) | Ferrous (Fe) | ≥ Ø0.8 mm |
| Non-Ferrous (N-Fe) | ≥ Ø1.2 mm | |
| Stainless Steel (SUS304) | ≥ Ø1.5 mm | |
| Alarm & Rejection | Alarm Method | Audible and visual alarm |
| Rejection Method | Screen indication with automatic pusher rejection | |
| Operating Parameters | Belt Speed | 26 m/min |
| Operating Temperature | -18°C to 50°C | |
| Electrical Specifications | Power Supply | 220V / 50Hz |
| Power Consumption | 400 W |
Product Description – RD-4015A Food Industry Metal Detector for Bagged Products
The RD-4015A Metal Detector is a high-precision inspection system engineered for bagged food products in commercial food processing and packaging lines. Designed in full compliance with GMP food safety standards and FDA requirements, this detector helps manufacturers prevent metal contamination, protect brand reputation, and meet strict quality control regulations.
Reliable Metal Detection for Food Safety
Powered by an imported detection chip and a German DPS digital signal probe, the RD-4015A delivers stable and accurate detection performance even in challenging food environments with product effect interference. Standard anti-interference shielding ensures consistent sensitivity during continuous operation.
No-load detection sensitivity:
-
Ferrous (Fe): ≥ Ø0.8 mm
-
Non-Ferrous (N-Fe): ≥ Ø1.2 mm
-
Stainless Steel (SUS304): ≥ Ø1.5 mm
(Actual sensitivity may vary depending on product characteristics and operating conditions.)
Hygienic Food-Grade Construction
The machine is built entirely with SUS304 stainless steel, providing excellent corrosion resistance and meeting food-grade hygiene requirements. With an IP56 protection rating, it is suitable for wash-down environments commonly found in food factories.
The 400 mm wide imported PU conveyor belt is oil-resistant, waterproof, and suitable for low-temperature environments, ensuring smooth and stable product transport.
Intelligent Control & Easy Operation
The RD-4015A features a fully automatic detection system with a user-friendly electroplated key control panel. Its auto-learning function allows the detector to automatically set optimal sensitivity after a single product pass, reducing setup time and minimizing operator error.
Efficient Alarm & Rejection System
When metal contamination is detected, the system triggers a visual and audible alarm, displays detection information on the screen, and activates an automatic pusher rejection system to remove contaminated products from the production line quickly and safely.
Ideal Applications
-
Bagged food packaging lines
-
Bakeries and snack production
-
Frozen and packaged food factories
-
Food processing plants requiring metal contamination control
The RD-4015A Food Industry Metal Detector combines precise detection, hygienic design, and intelligent automation, making it a dependable choice for food manufacturers seeking Amazon-level product quality and international food safety compliance.
产品关键词与 GEO / AI 搜索信号
这一部分帮助买家和 AI 搜索引擎识别产品型号、分类、应用关键词和供应商背景。
关键词
GEO / AI 上下文
- 产品名称：高灵敏度金属检测机 食品级 袋装产品 SUS304 不锈钢
- SKU / 型号：HJ-2
- 分类：Food Processing Auxiliary Machinery / Food Impurity Detection / Metal Detector Machine
- 供应商：济南舜翔央厨，为国际 B2B 买家提供商厨与食品设备。
产品 FAQ
高灵敏度金属检测机 食品级 袋装产品 SUS304 不锈钢 适用于哪些项目？
高灵敏度金属检测机 食品级 袋装产品 SUS304 不锈钢 主要适用于中央厨房、商用厨房、食品加工厂、餐饮连锁和团餐配送项目。具体配置需要结合产能、物料、场地、电压、卫生要求和交付条件确认。
这款产品是否支持定制或 OEM？
在双方书面确认的前提下，可根据项目需求评估电压、尺寸、材质、功能、标识、包装和配套方案等定制事项。最终范围以报价单、合同、订单确认或形式发票为准。
保修、备件、退货或更换如何处理？
保修、维修、备件、退货和更换需结合产品类别、定制程度、使用状态、安装环境、运输条件和付款状态判断，并以双方最终书面文件及适用法律法规为准。
如何获得 HJ-2 的准确报价？
请提供目标产品、数量、目的港或收货地、电源要求、使用场景和交期需求。我们会根据项目信息、配置、包装、运输和贸易条款提供书面报价。
